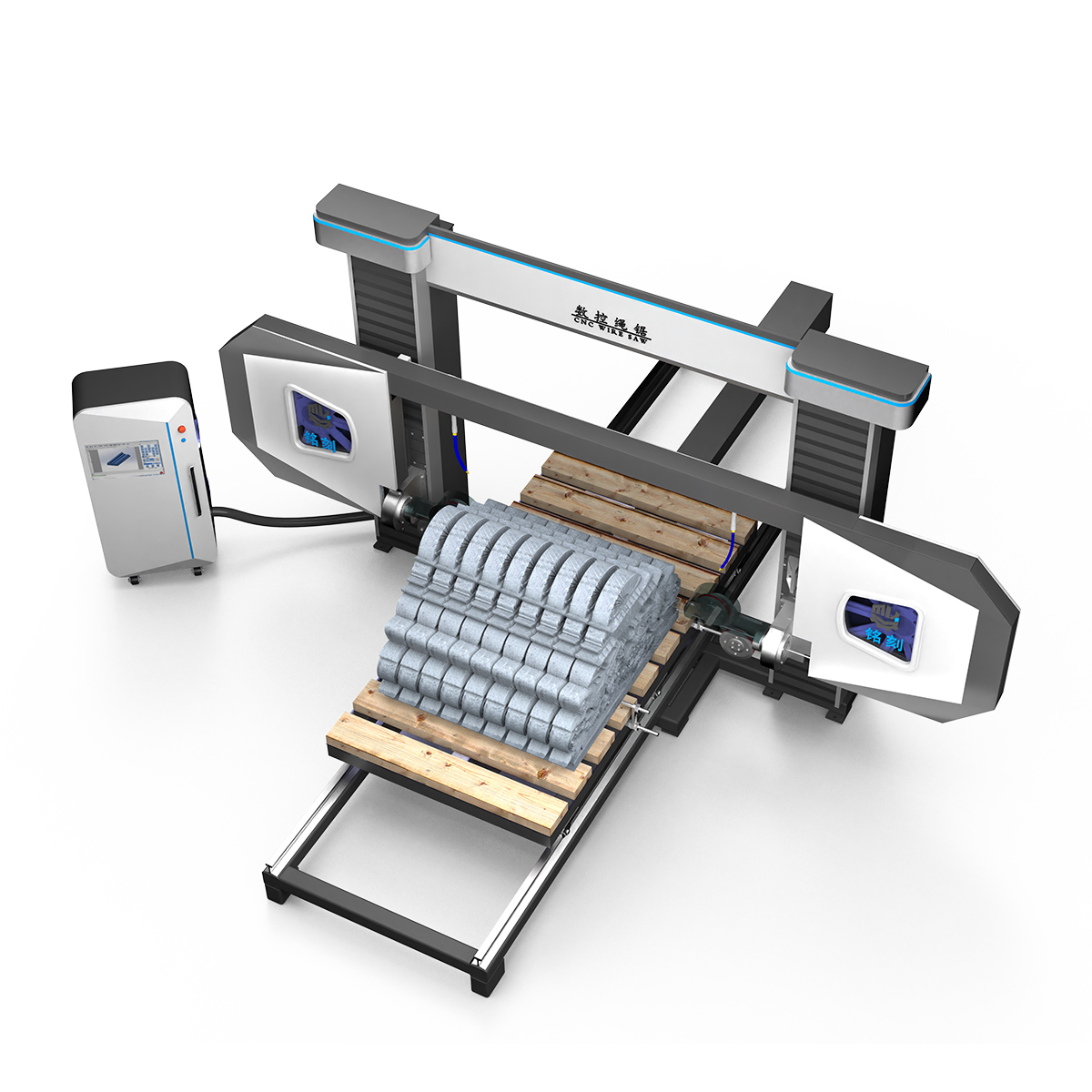

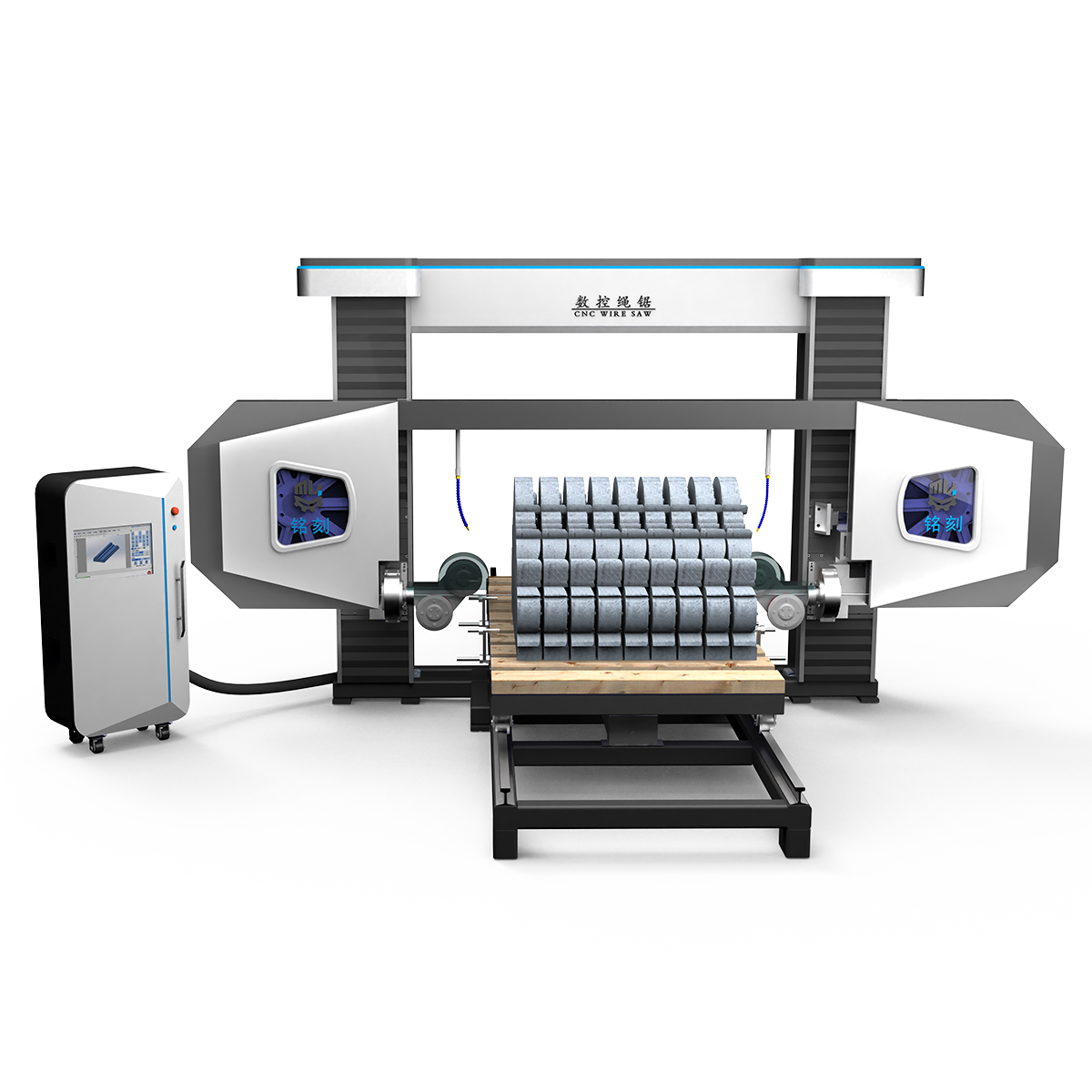

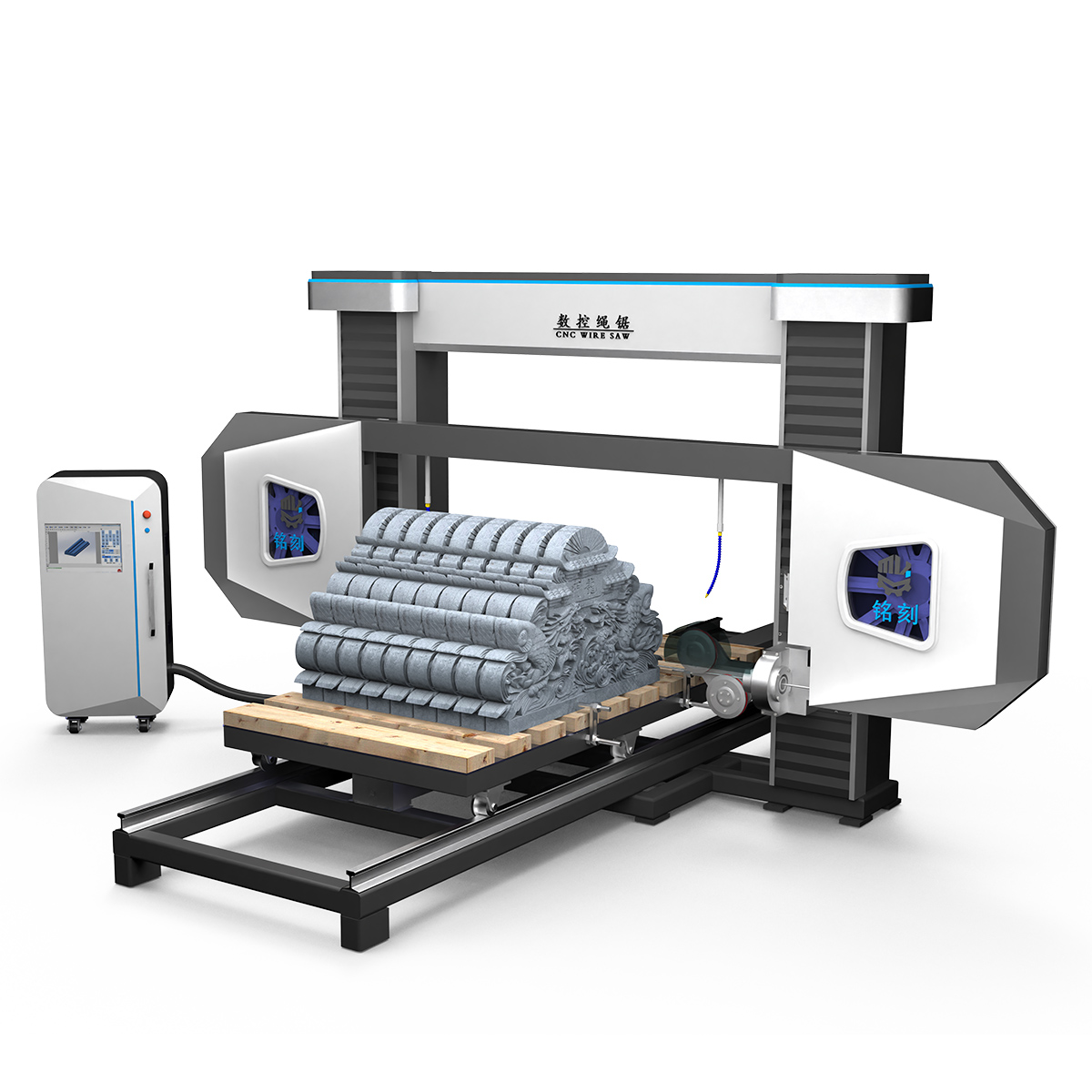

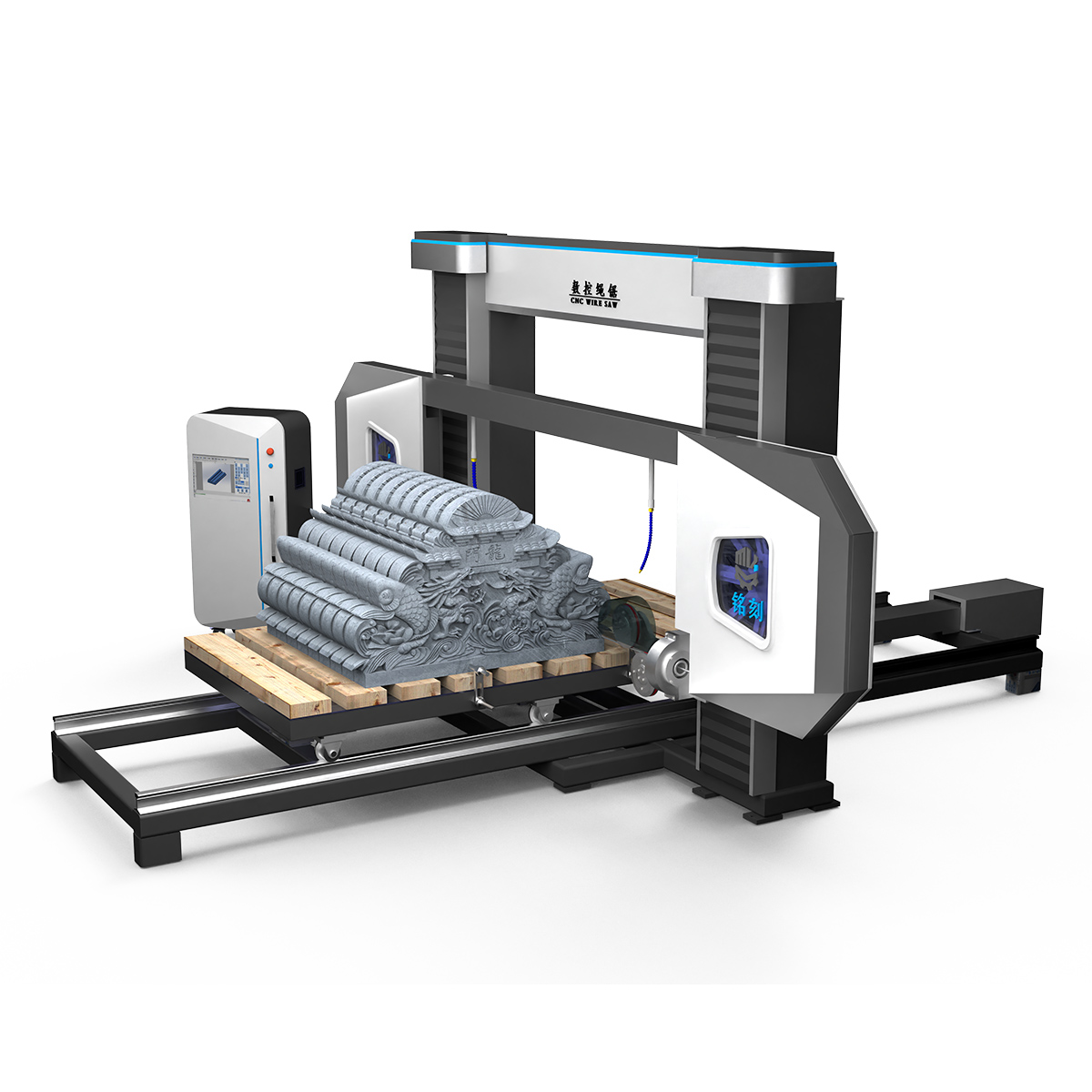

Wire Saw Cutting Machine
This CNC wire saw is equipped with a rotatable A-axis, which improves the natural curvature of the diamond wire during cutting. This significantly enhances cutting precision, ensures high-quality finished products, and provides millimeter-level precision machining for high-value stone materials. It is an industrial device that uses diamond beaded wire for cutting, widely applied in stone processing, building demolition, and other fields.
Working Principle
Driven by servo motors and assisted by a hydraulic tensioning system, the wire saw maintains optimal tension and stability in the diamond bead wire. This system propels the closed-loop diamond bead wire at high speeds. The diamond particles on the bead surface leverage their extreme hardness and sharpness to perform high-speed grinding on the workpiece, enabling complex contour cutting. An automatic water injection system provides cooling and slurry removal during operation.
Structural Features
Four-axis linkage system: Incorporating Y, Z, A axes, and a rotary axis. This integrated four-axis control precisely guides the diamond wire’s trajectory, enabling cutting of complex-shaped materials.
System: Utilizes a CNC intelligent wire sawing system with four-axis linkage capability. It offers user-friendly operation, high precision, and supports importing various CAD and G-code inputs for machining. Safety: Automated operations during machining enable unmanned operation mode, ensuring both high-efficiency cutting precision and personnel safety.

Cutting Power: The main drive motor utilizes a high-density 15KW large motor, offering powerful torque, low vibration, and robust performance.
Motion System: The entire machine employs AC servo motors, delivering smooth operation, high precision, and high rotational speed for efficient machining.

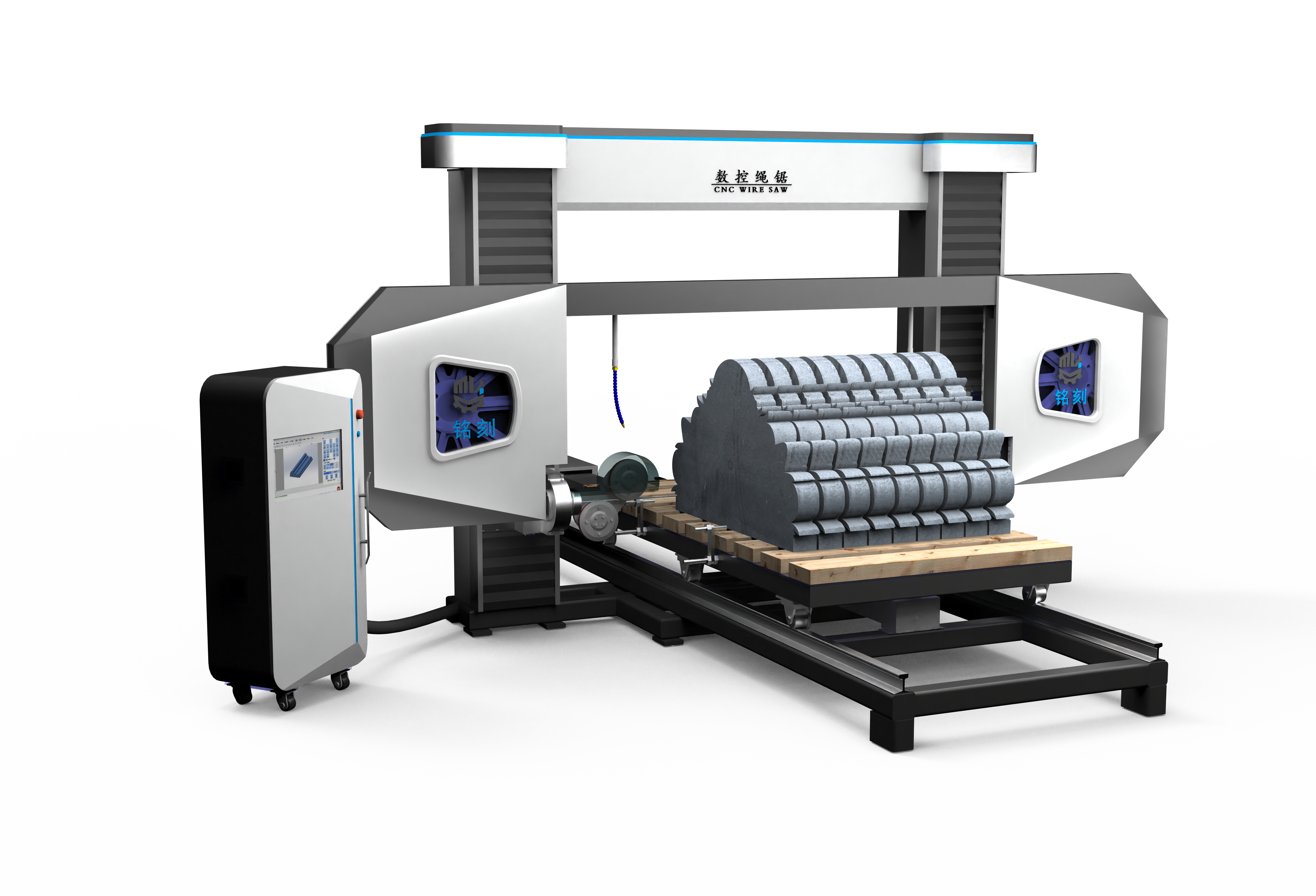

Structure: The gantry-style frame incorporates dual flywheels with ball screw drives for both vertical and horizontal axes. This design enables smooth, flexible, and stable movement. The Z-axis is independently controlled by separate servo motors, facilitating easy height adjustment and precise level maintenance. The A-axis rotary wheel features dynamic tension adjustment to optimize diamond wire force direction during operation.
Efficiency: High-torque, high-precision motors combined with the dynamically adjustable A-axis ensure efficient processing, achieving over 6 times the efficiency of traditional cutting methods.

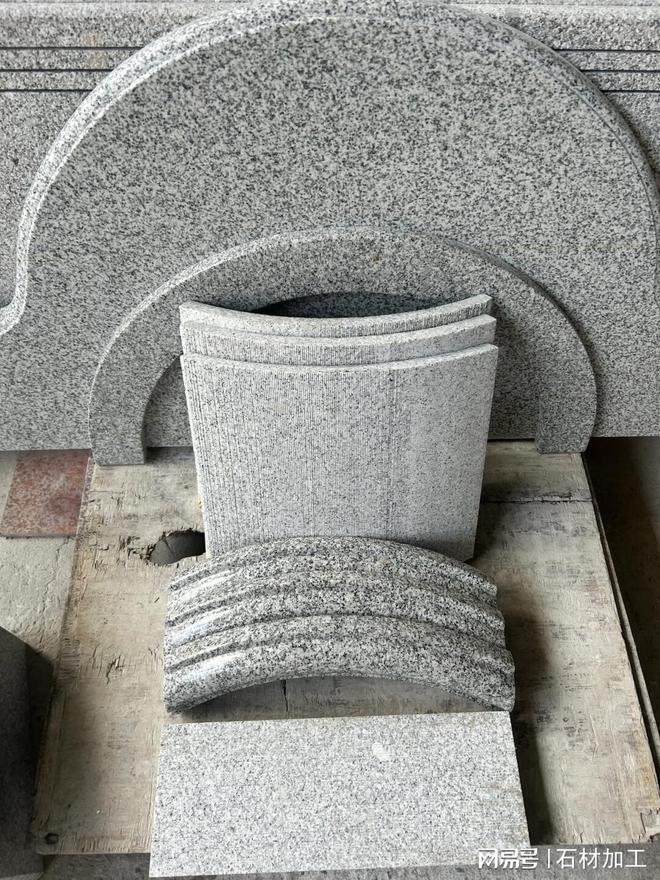

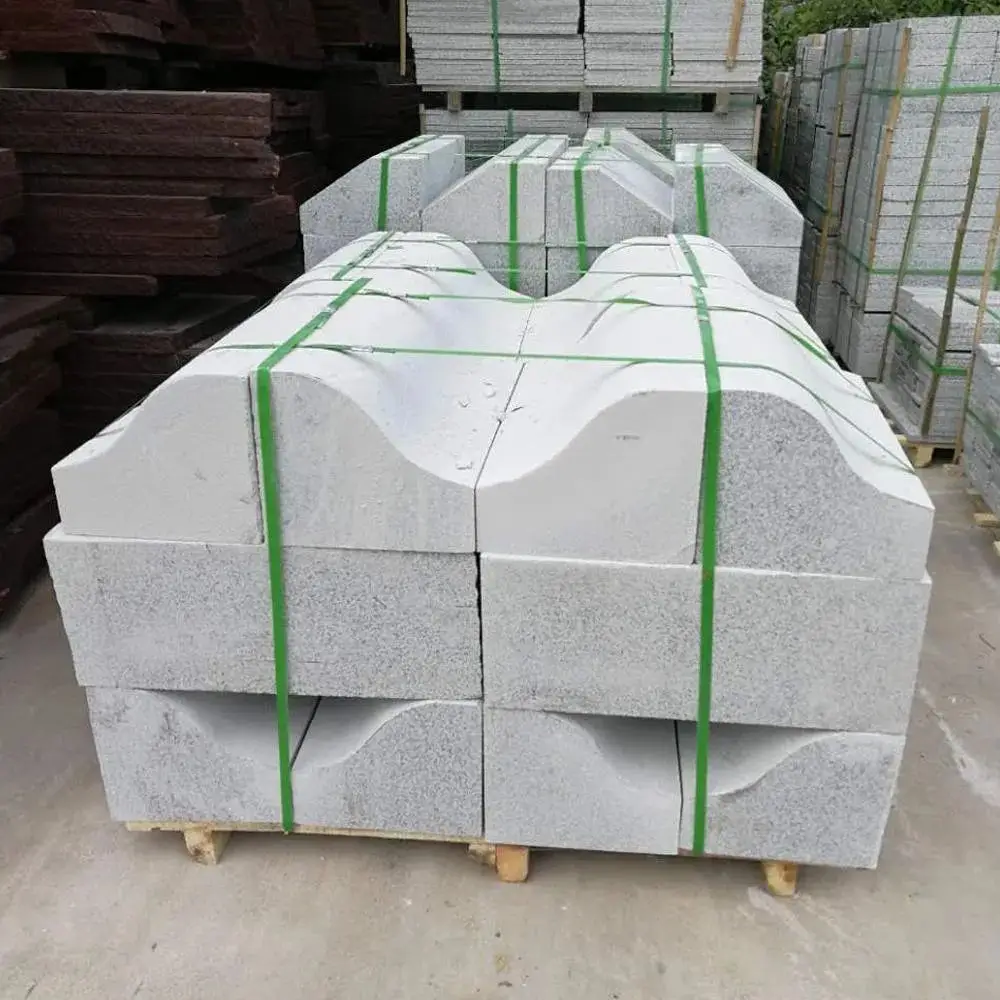

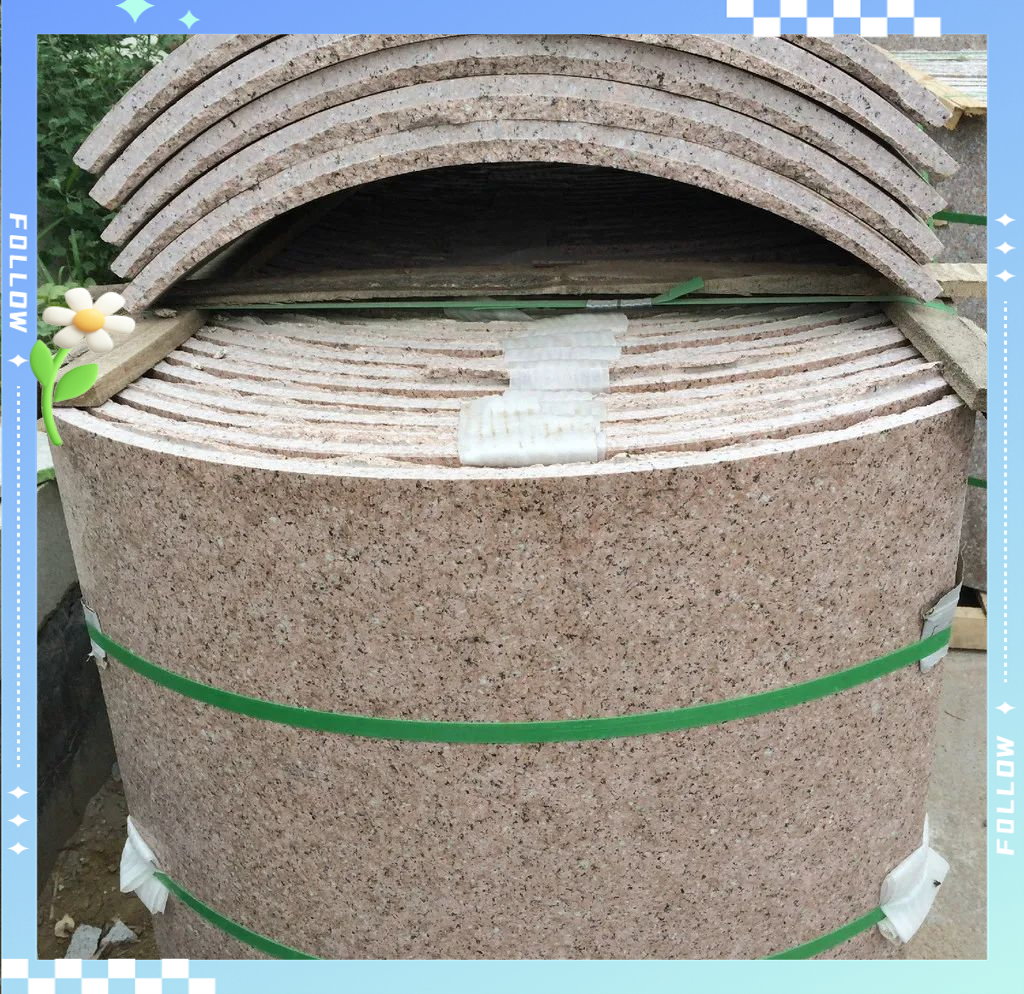

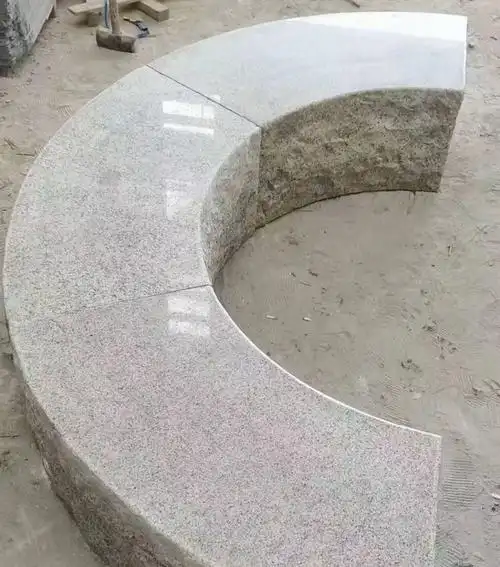

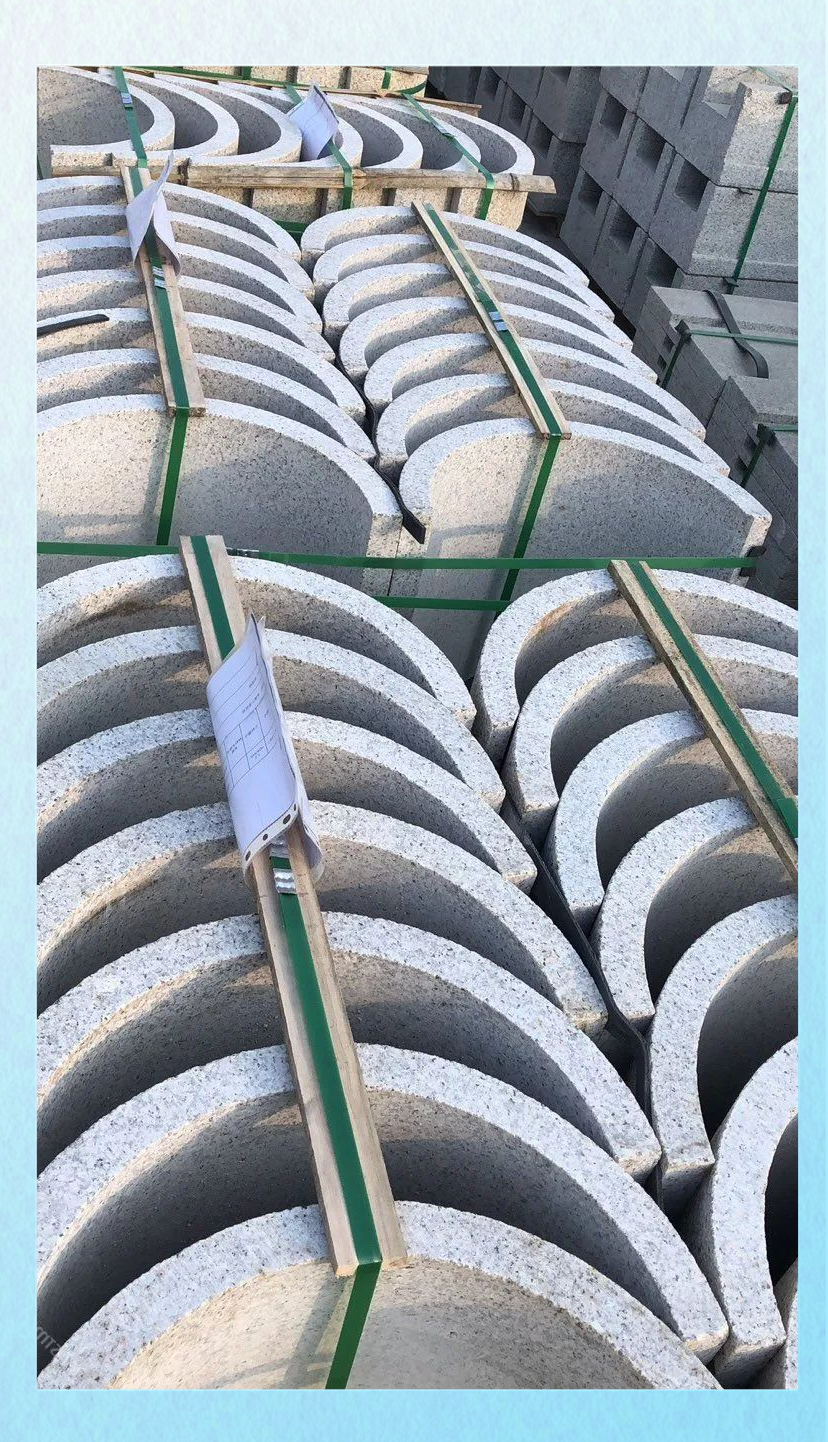

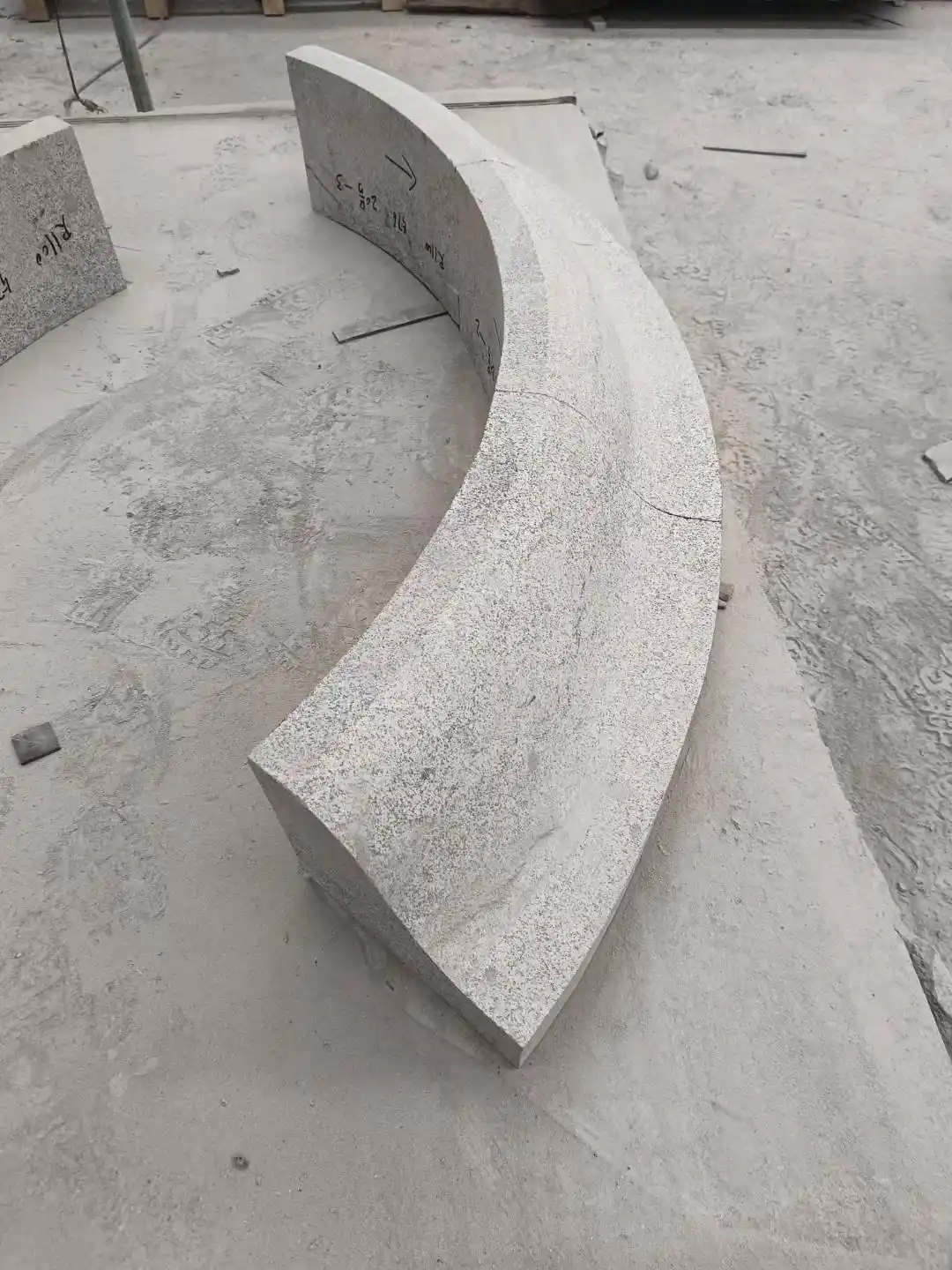

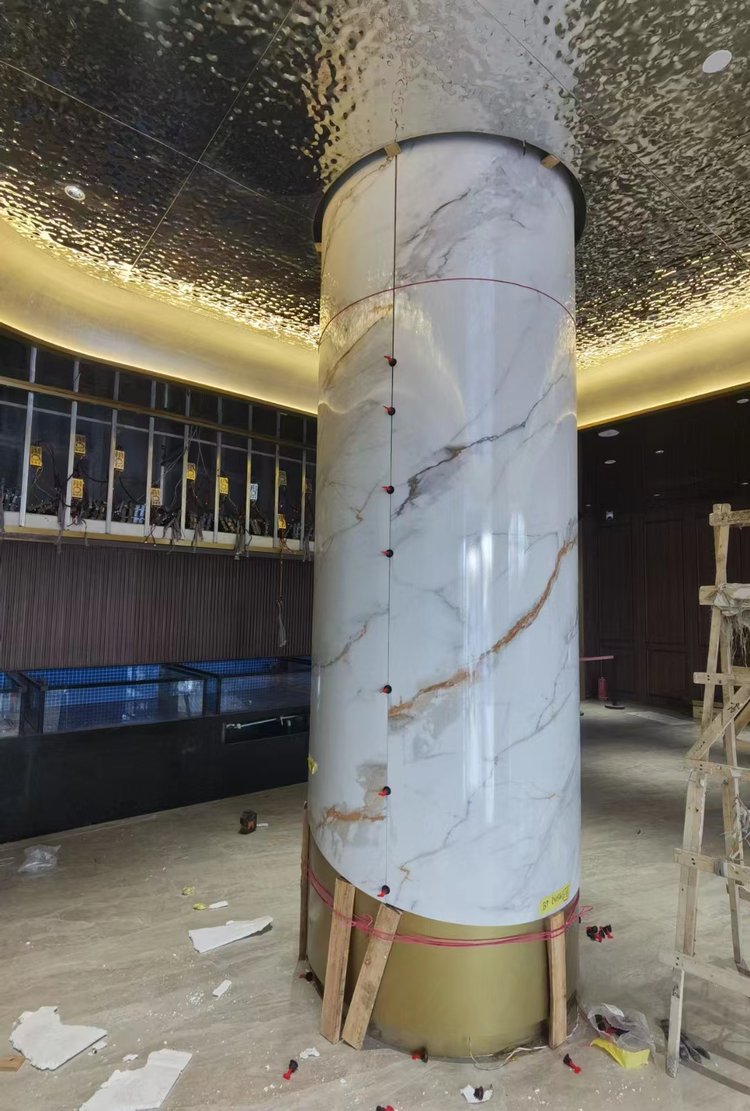

Wide Application Range: Suitable for cutting stone, reinforced concrete, glass, ceramics, metals, and other materials. Widely used in mining, custom stone cutting, building demolition, and also applied in precision machinery manufacturing sectors like aerospace and automotive production.

Q: What services do you provide for this equipment?
A: 1. Overseas on-site installation and after-sales service are available. 2. The system operates in an Internet environment, enabling remote CAD drawing and G-code import, with free system upgrades provided.

Q: What is your processing size range?
A: Our smallest model is 1325! It can process materials up to 1300*2500*1000mm. The largest model is 2540! It can process materials up to 2500*4000*1800mm. Custom production is available based on your actual requirements.
Q: Does the diamond wire on this wire saw break easily?
A: No. 1: We employ a large-diameter flywheel, providing a generous bending radius when driving the diamond wire rotation. 2: This equipment features an automatic hydraulic tensioning system that applies balanced pressure to the diamond wire during processing, maintaining consistent tension. These two key aspects ensure the diamond wire is resistant to breakage.
Q: Is your wire saw machine easy to learn to operate?
A: This equipment utilizes an intelligent CNC system that is intuitive to monitor and operate. It supports importing various CAD, G-code, and other path formats. Operators do not need CNC toolpath programming experience and can fully master the machine’s operation and processing within 3-4 days.
