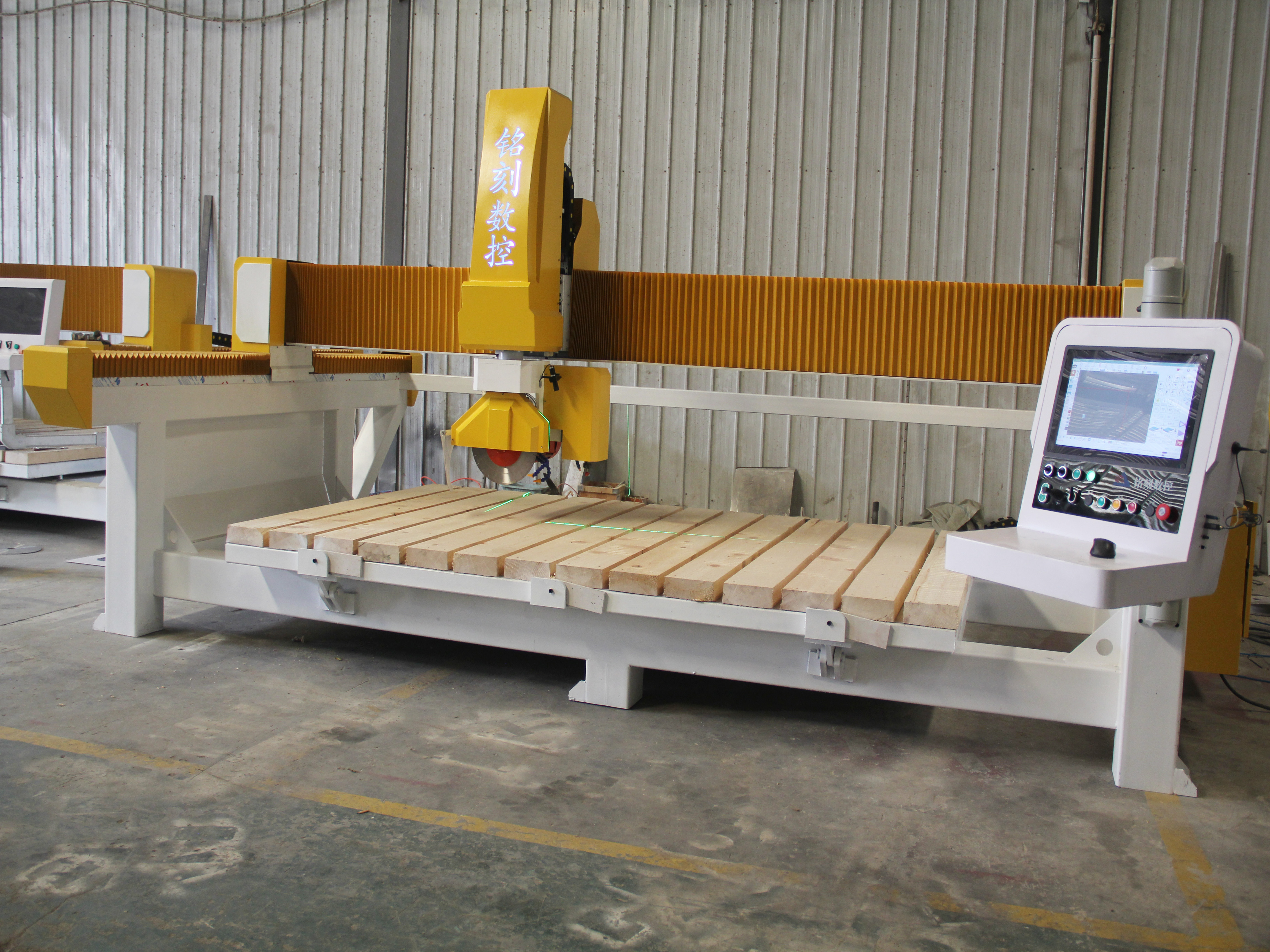

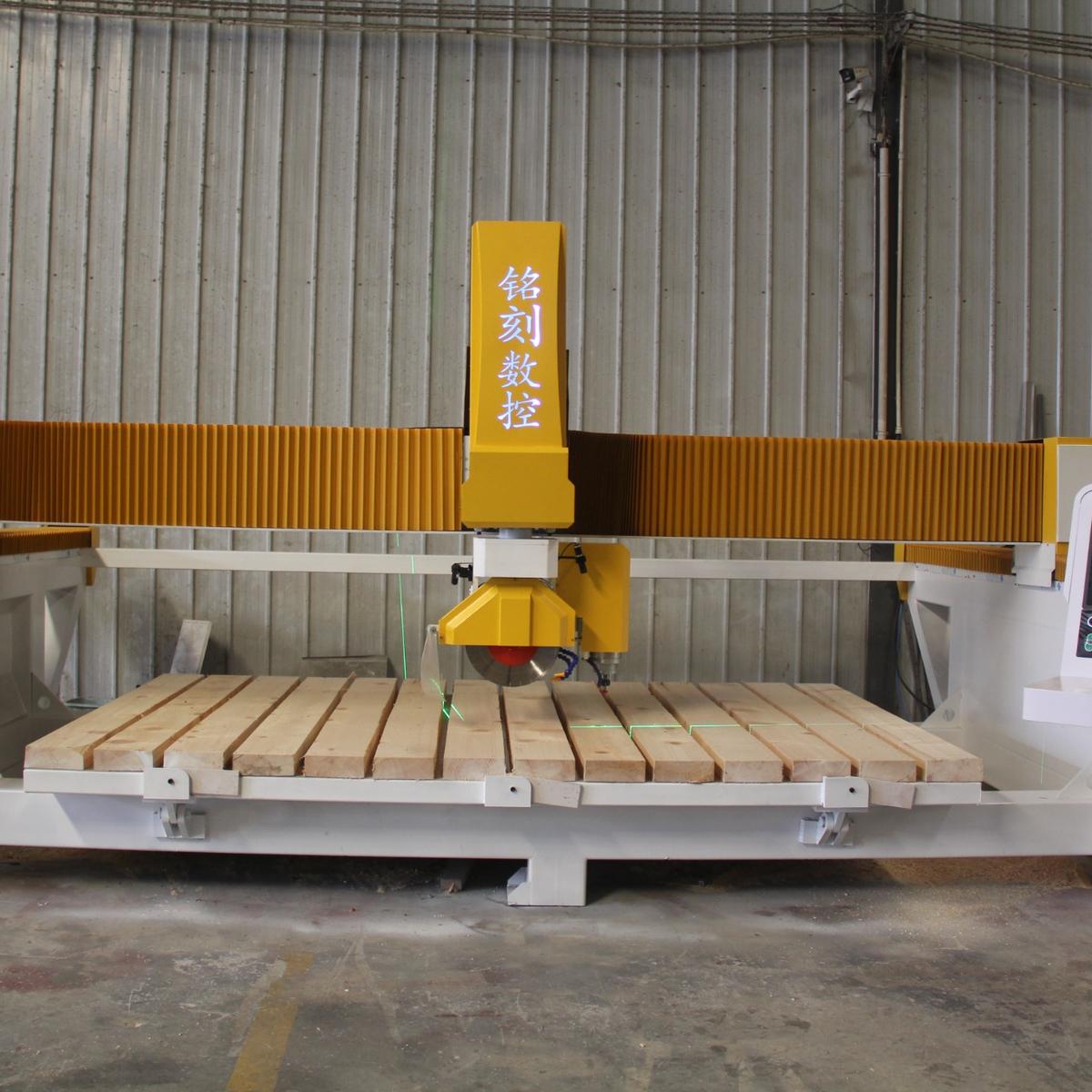

High-Precision 4+1 Axis Bridge Cutting Stone Machine
Be a good CNC machine tool that users can afford

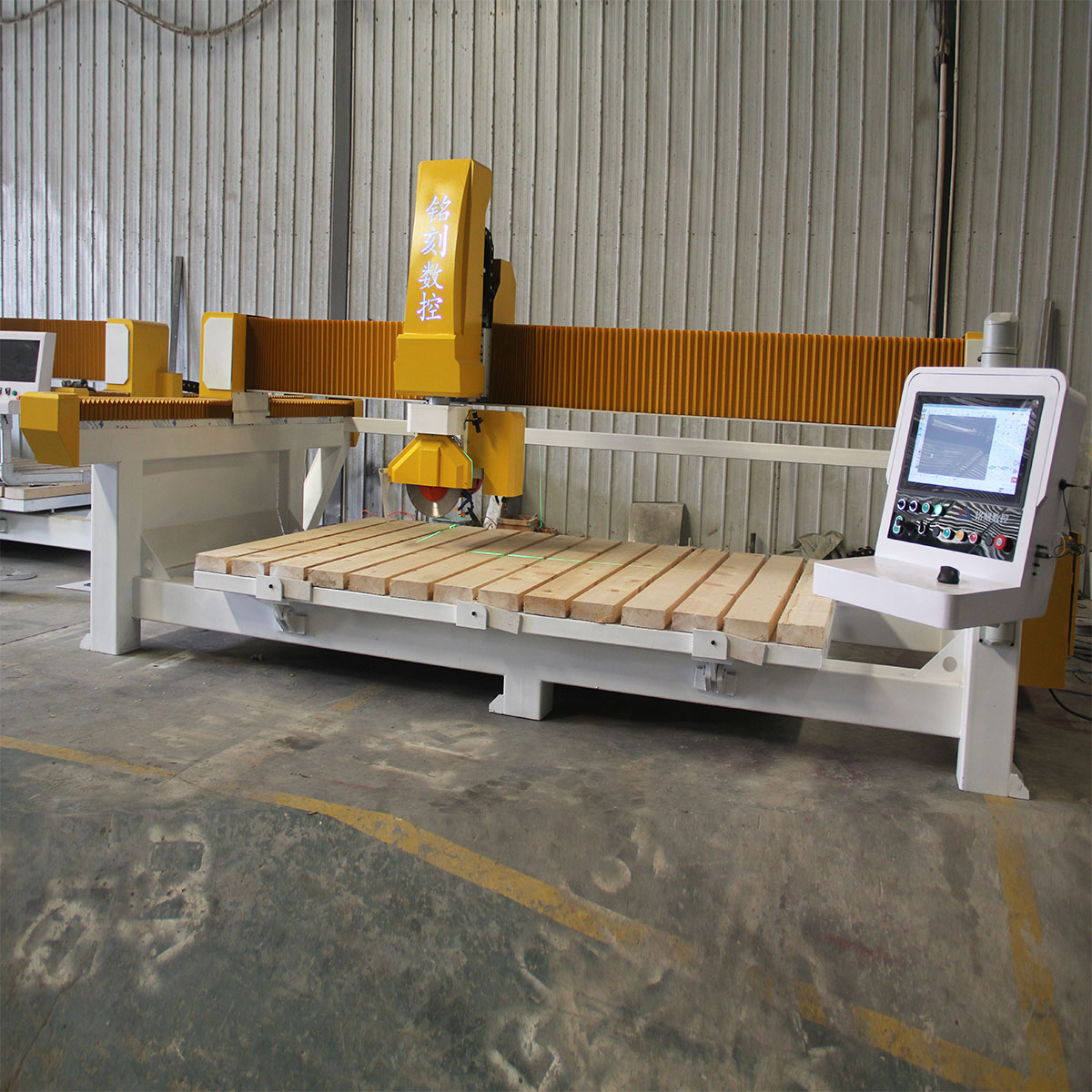

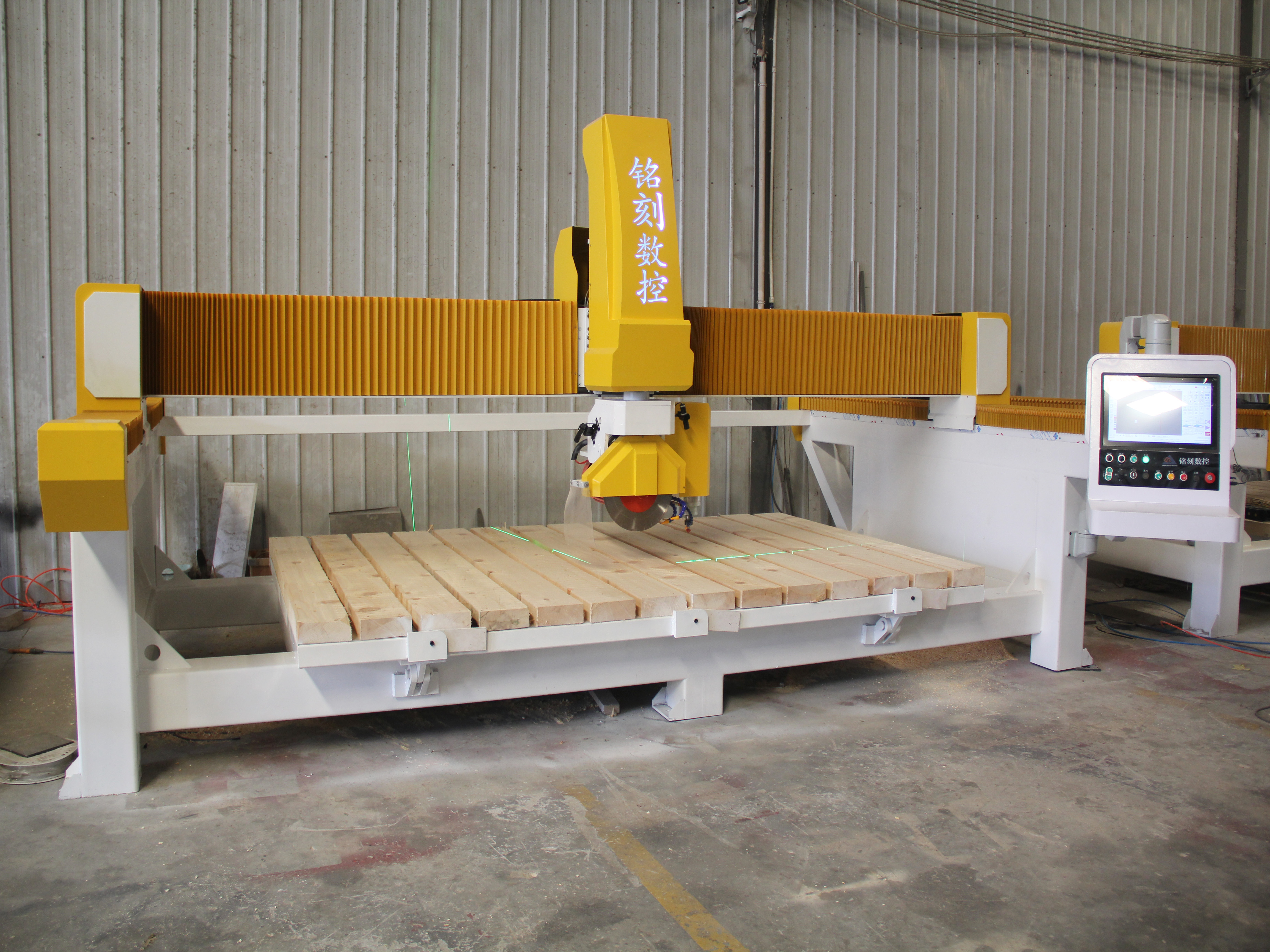

High-Precision 4+1 Axis Bridge Cutting Stone Machine
High-Precision 4+1 Axis Bridge Cutting Stone Machine
The 4+1-axis CNC stone cutting machine is specifically designed for precision cutting of complex shapes in granite and other natural stones. Key features include an independently developed bridge-cutting customization system, a saw blade rotation range of 0-360°, and a worktable tilt angle of 0-85°. Operating at a standard speed of 2800 RPM, the machine is equipped with a 15 kW main motor and supports XYZ-axis motion communication via a 1.5 kW bus servo system. Cutting speeds range from 1-12000 mm/min on the X and Y axes and 1-2000 mm/min on the Z axis. It features a large 3200*2000 mm worktable with overall dimensions of 5200*3300*2500 mm and supports various CAD/CAM formats. Engineers provide overseas on-site service, with training materials including manuals, video tutorials, and remote support.
Specification ：
| Category | Name |
| Product Name | (4+1) Stone Bridge Saw |
| Brand | Mingke |
| Bed Frame | Large-scale reinforced square tube welded frame structure |
| Cutting Dimensions (X * Y * Z) | 3200*2000*300 |
| External Dimensions (L * W * H) | 5200*3300*2500mm |
| Workbench | 3200 * 2000mm |
| Maximum Blade Diameter / mm | 360-700mm |
| Control System | Proprietary bridge saw custom system (touchscreen, manual input) |
| System Supported Formats | Import Support for CAD, CAM, DXF, G-code |
| Workbench Tilt Angle | 0-85° |
| Blade Rotation Angle | 0-360° |
| Blade Tilt Angle | 0-45° |
| Main Motor Power | 15KW |
| Standard RPM | 2800r/min |
| Electric Spindle | 7.5kW |
| Motion Power (W) | 18.5kW |
| Voltage | 380V/50Hz |
| Transmission | X/Y Rack + Planetary Gearbox + Z Ball Screw |
| Guide Rails | 30mm Linear Square Guide |
| XYZ Motion System | AC 1.5KW Bus Servo |
| X-Axis Cutting Speed | 1-12000 mm/min |
| Y-Axis Cutting Speed | 1-12000 mm/min |
| Z-Axis Cutting Speed | 1-2000 mm/min |
| Country of Origin | Shandong, China |
| Warranty Period | 1 year |
| Water Consumption | 3.5 m³/h |
| Video Factory Inspection | Available |
| Cutting Materials | Natural stone materials: stone slabs, quartz stone, marble, granite, tiles, etc. |
| After-Sales Service Provided | Engineers available for overseas on-site service |
| Suitable Cutting Shapes | Horizontal/vertical cuts, 45-degree chamfers, diamond shapes, trapezoids, circles, fans, ellipses, polygons, horse-belly shapes, L-shaped corners, custom-angle countertop cuts, square holes |

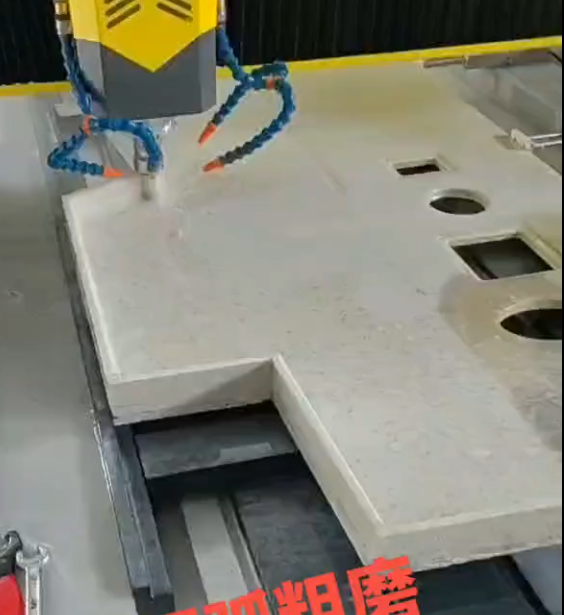

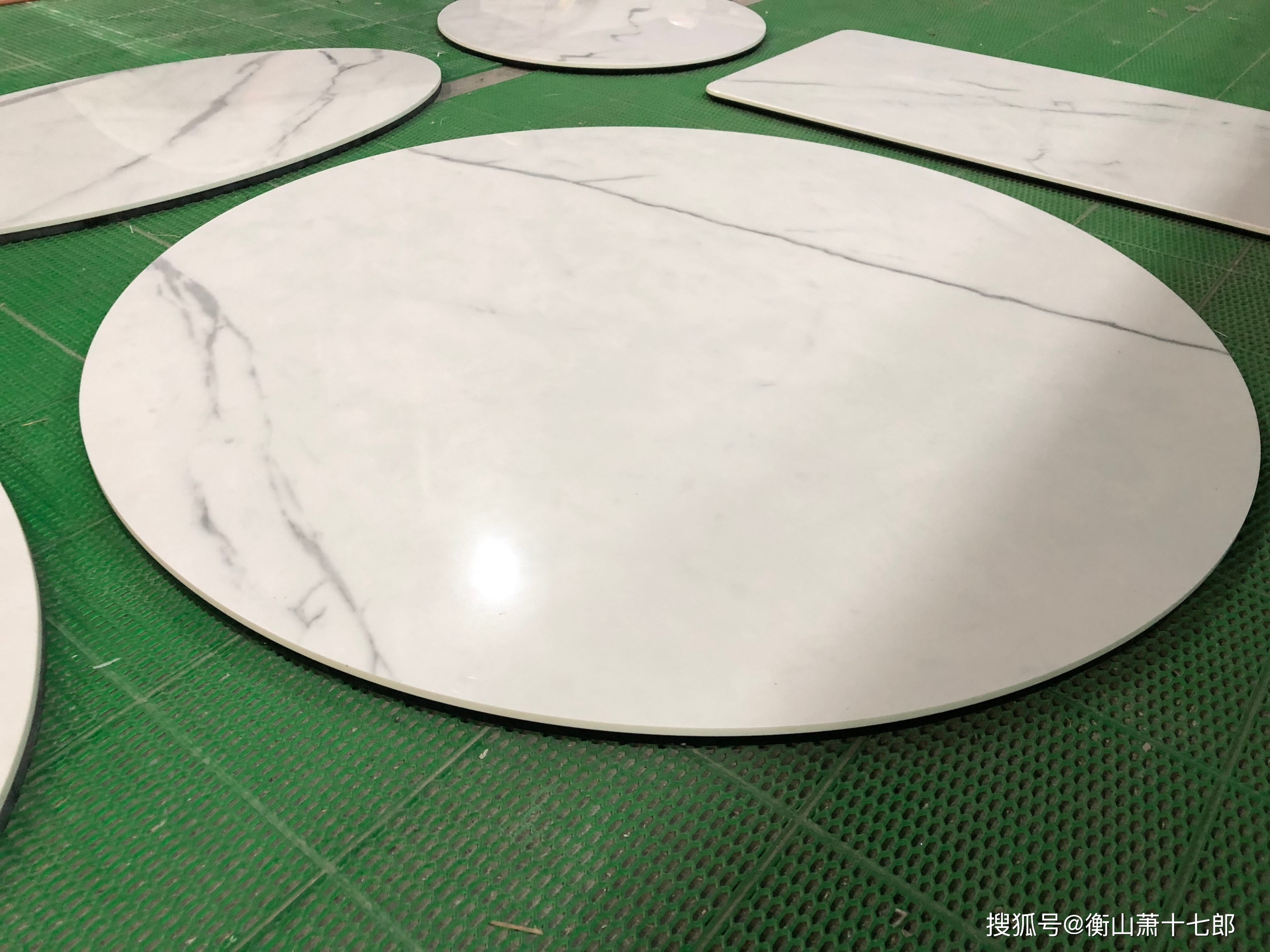

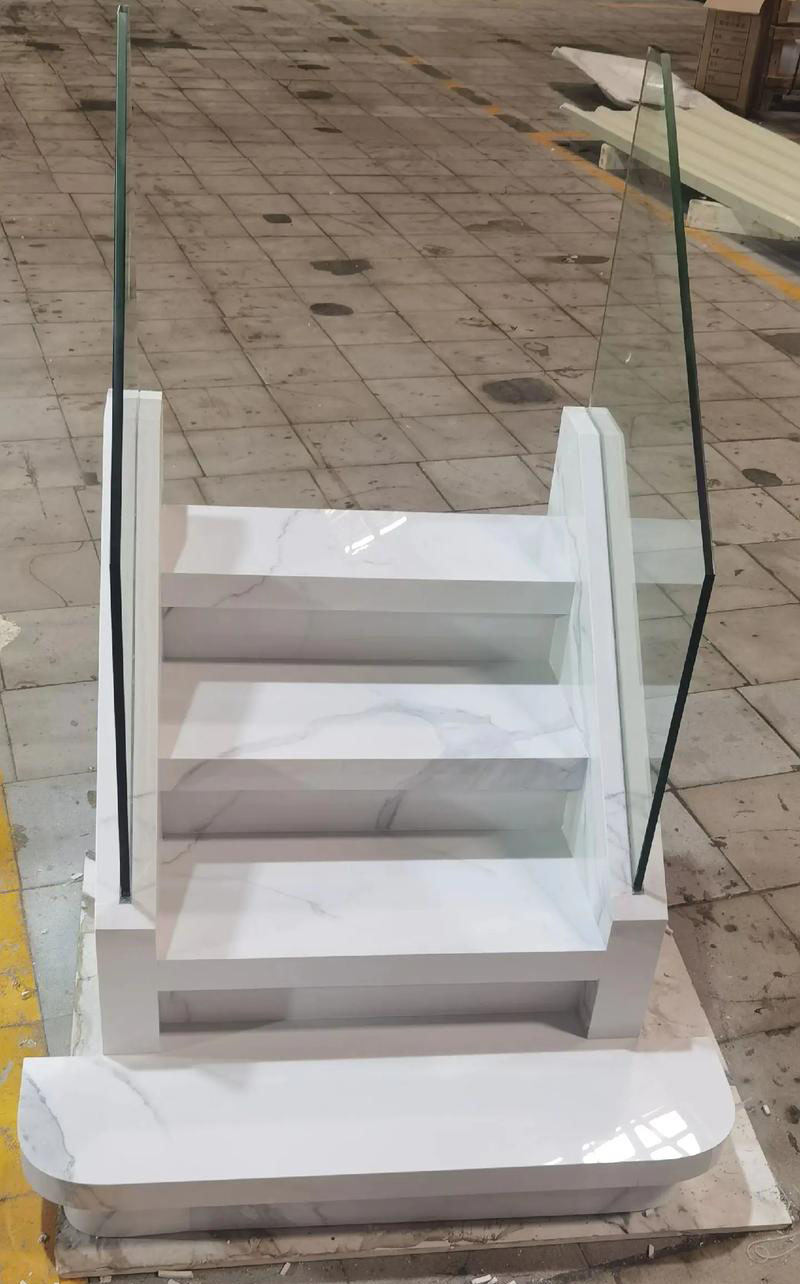

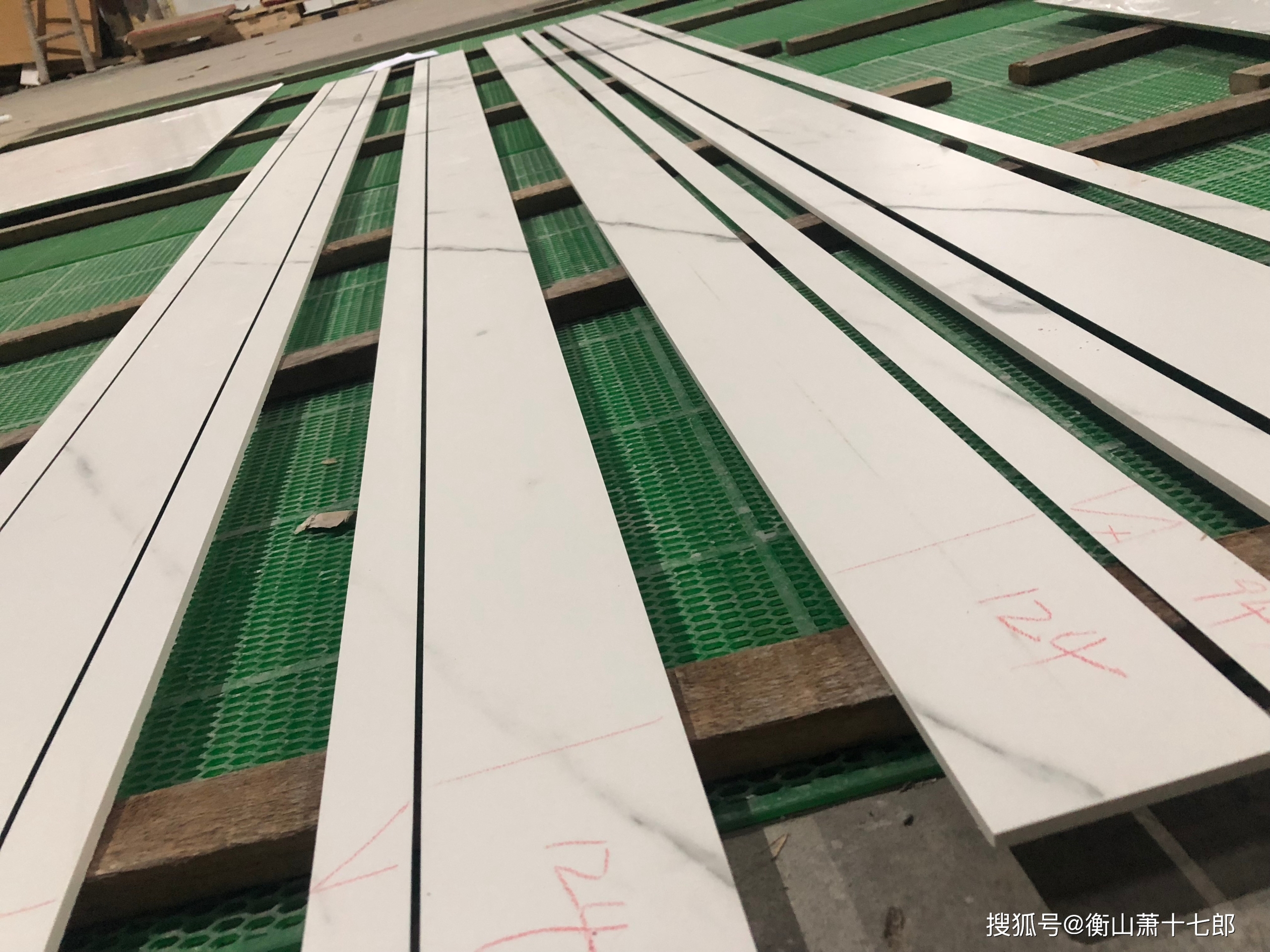

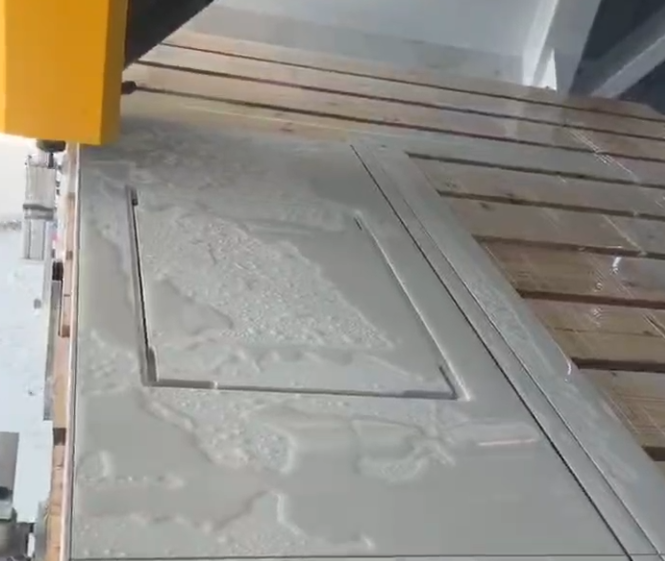

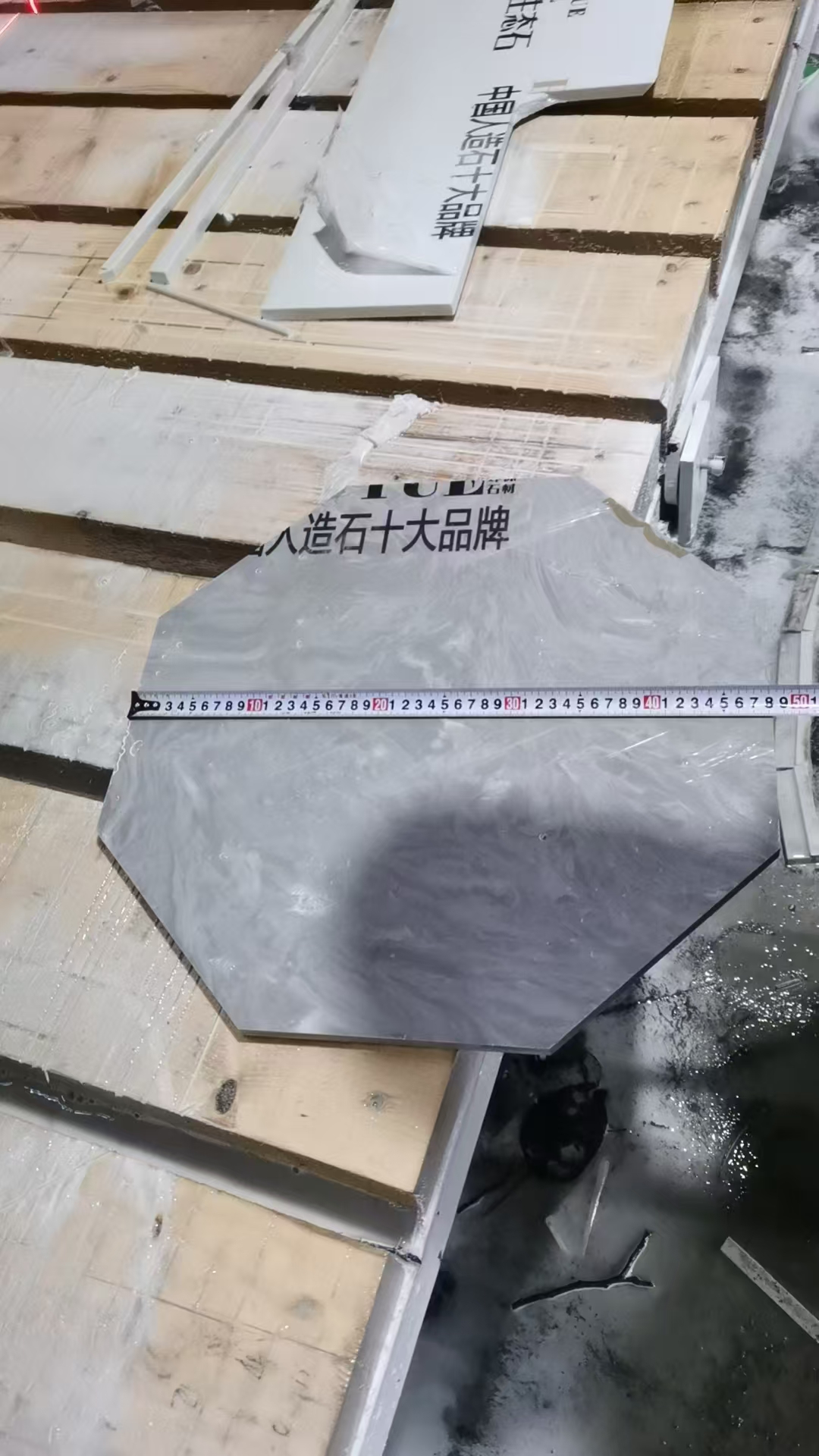

EQUIPMENT PRODUCTION SAMPLES
Wide adaptability and can be adjusted according to customer products
EQUIPMENT FINISHEDPRODUCT DISPLAY
Extraordinary texture, defining the height of life
